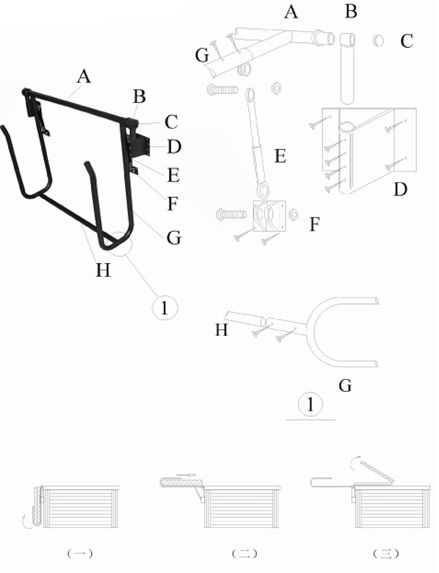

STEP 1

Measure the lengths of the bracket to ensure they are equal to both sides.  Then drill bracket D onto the Spa x 2.



STEP 2

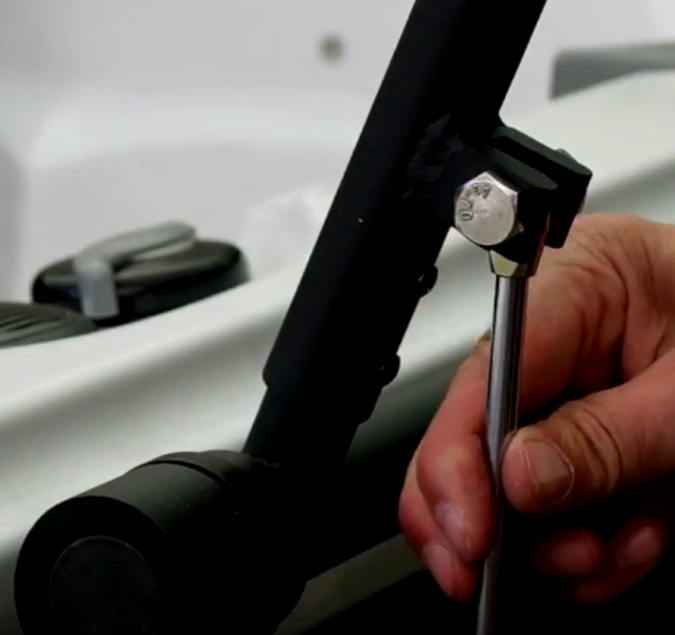

Assemble A, B and C into a horizontal bar and slide the bar into bracket D.  Then screw into bracket D to secure. Check Spa cradle is level and fasten.







STEP 3

Screw horizontal bar x 2 to cradle fitting G, H and L and connect. Check Spa cradle is level and to fasten.

STEP 4

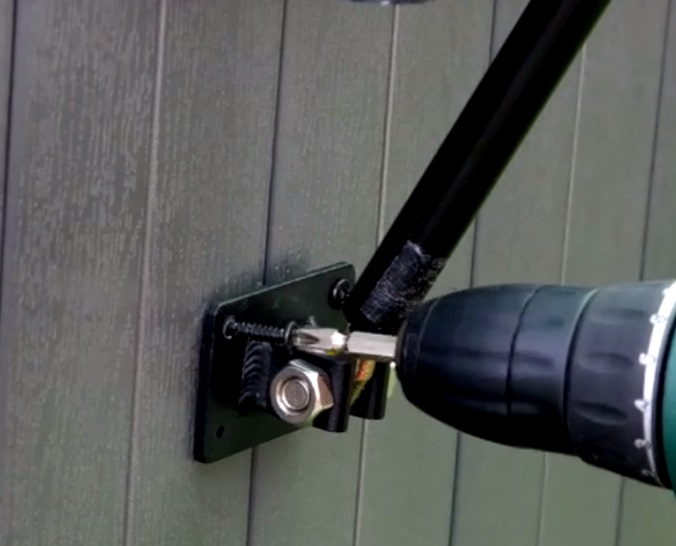

Connect hydraulic bar E to bracket, then connect hydraulic bar F to Spa.







Your basket lifter is ready to use...
